Drain Cover & Frame

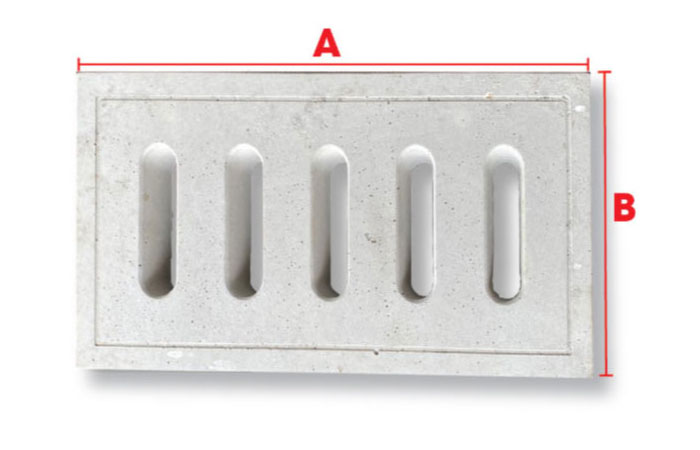

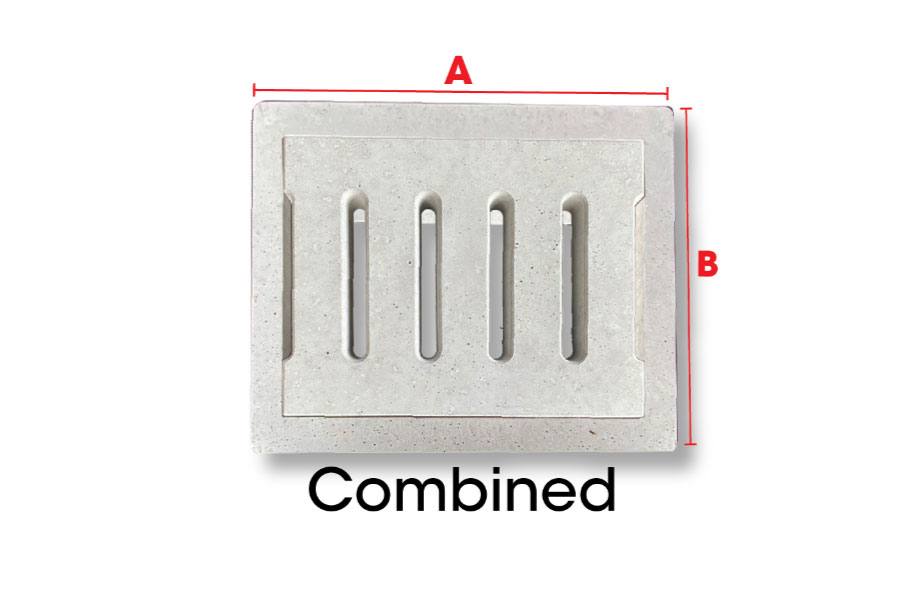

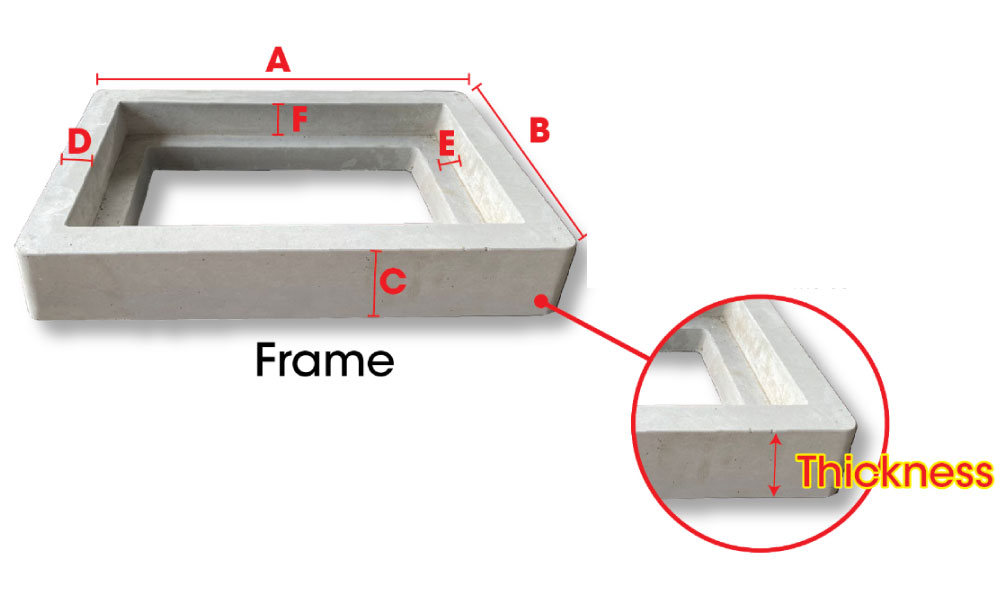

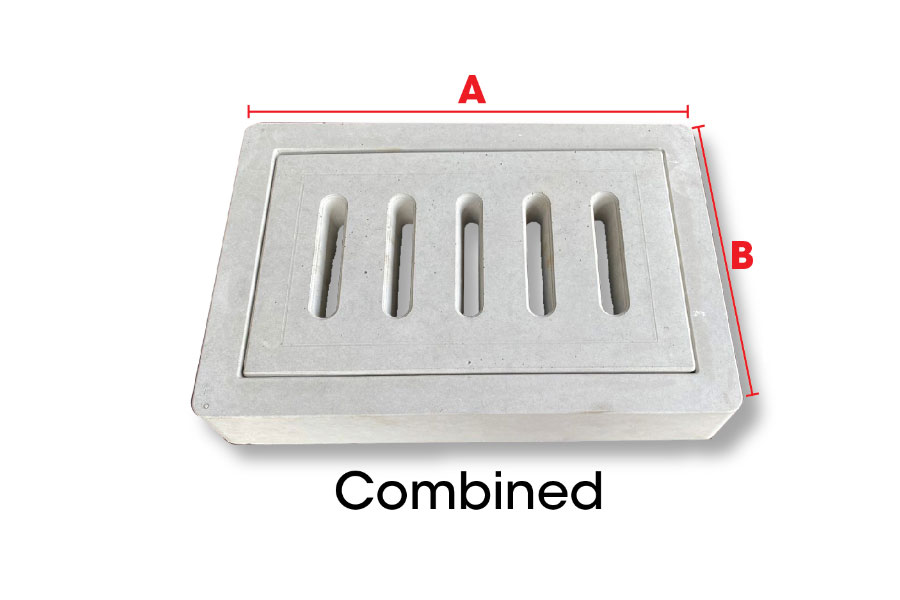

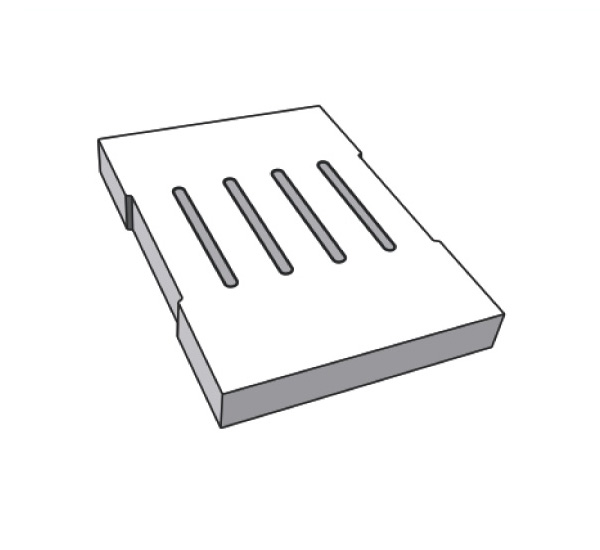

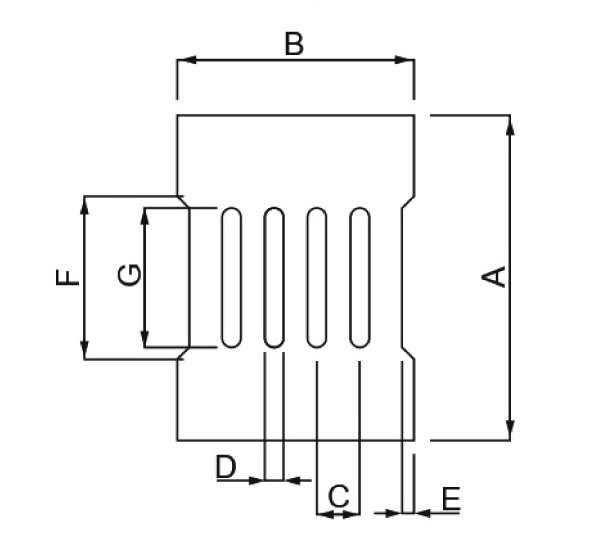

• Drain Cover With 4 Holes & Side Holes

concrete drain cover malaysia
concrete drain cover malaysia

product specification

ITEMS A B C D E F G THINCKNESS
NL 300 5H 350 500 100 20 10 170 170 60
NL 600 5H 700 500 100 20 10 300 290 80

*Scroll to the right to see more details.

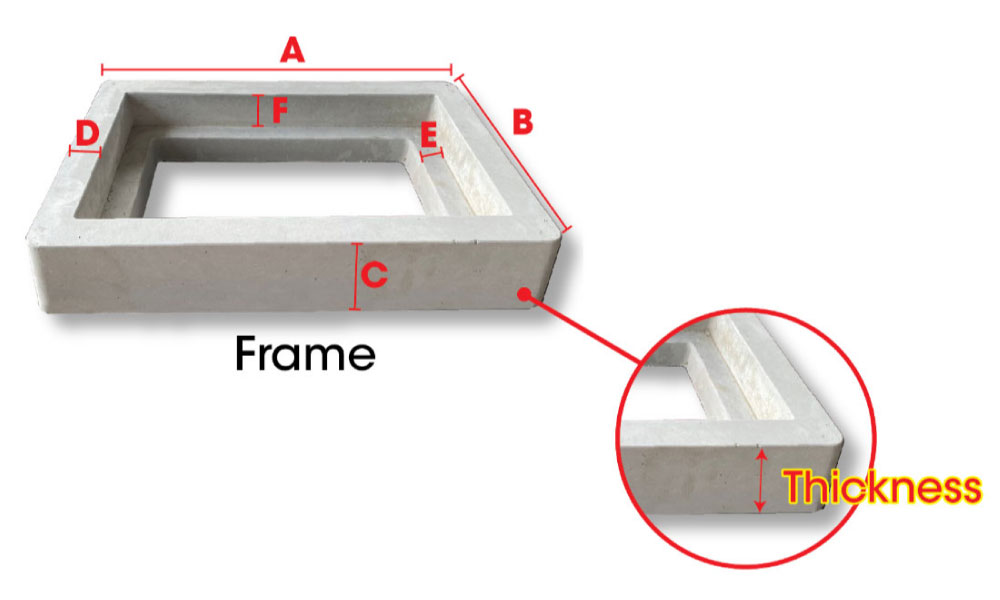

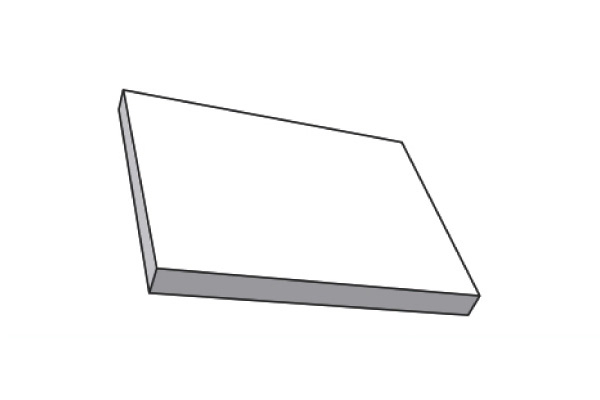

• Drain Cover With No Holes


precast drain

concrete drain cover

product specification

ITMES A B THICKNESS
NL 225 NH (S) 300 300 50
NL 225 NH 300 600 50
NL 450 NH (S) 600 600 60
NL 450 NH 600 1000 60
NL 600 NH 740 1000 60
NL 750 NH 900 1000 60
NL 900 NH 1100 500 60
NL 1200 NH 1400 500 60
NL 1500 NH 1700 500 60

*Scroll to the right to see more details.

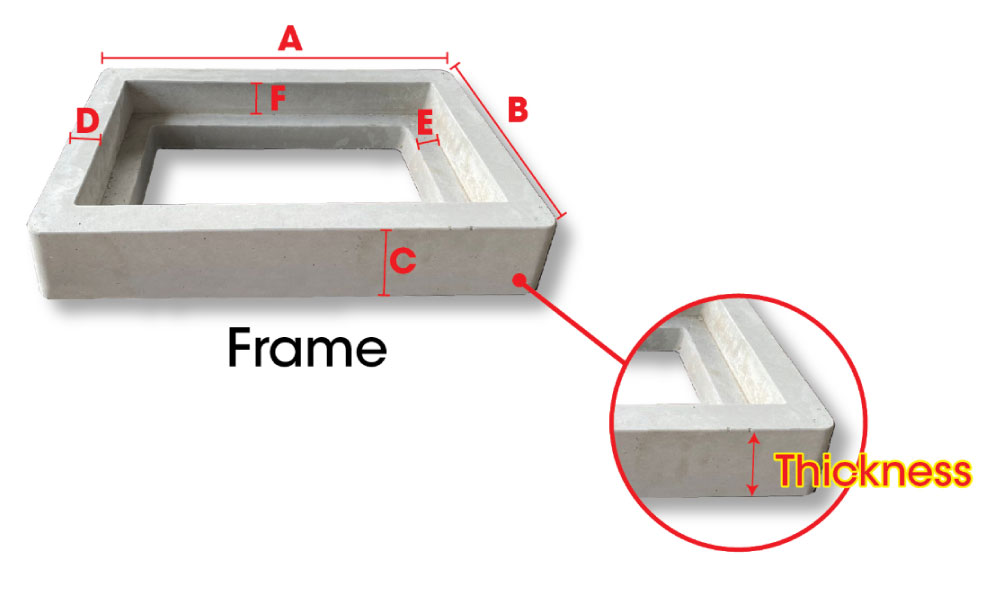

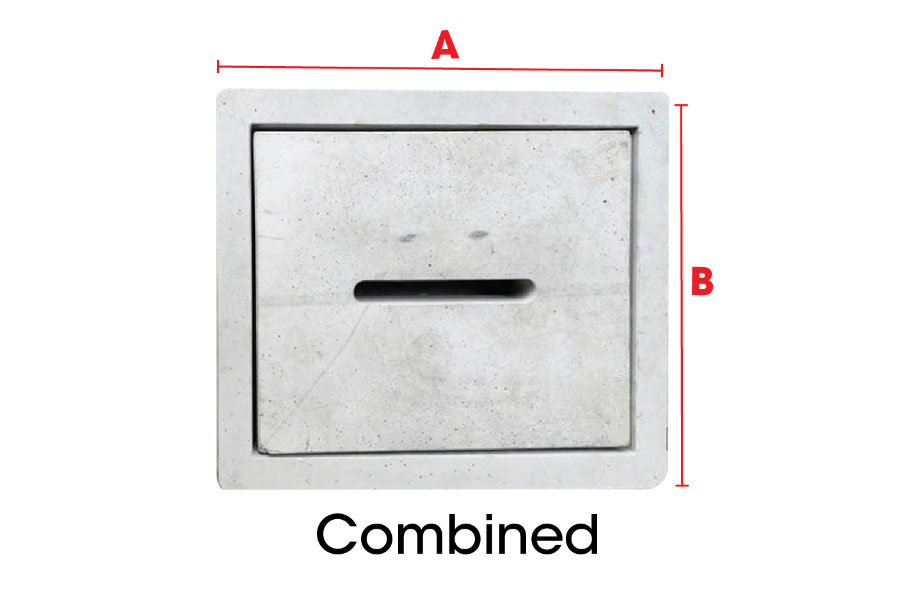

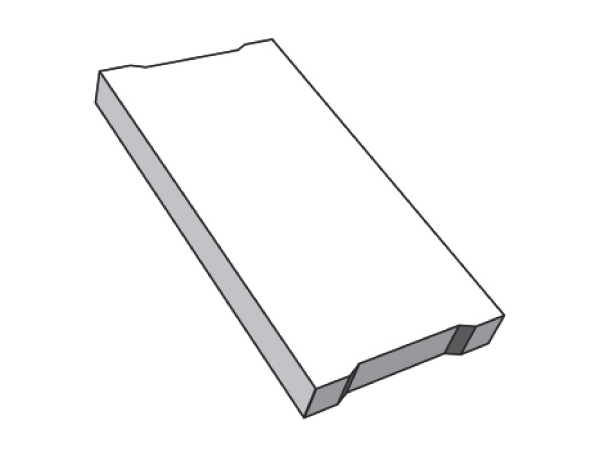

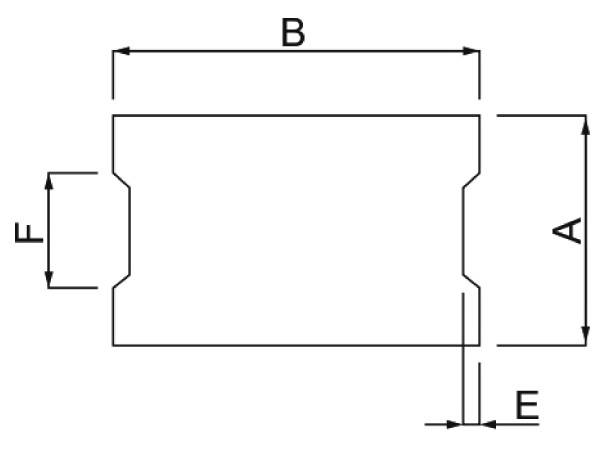

• Drain Cover With Side Holes


concrete drain cover

Reinforced Concrete Drain Cover

product specification

ITEMS A B E F THICKNESS
NL 225 SH 300 600 20 200 60
NL 300 SH 400 600 20 200 60
NL 375 SH 500 600 20 300 60
NL 450 SH 600 600 20 300 60
NL 600 SH 800 600 20 300 60

*Scroll to the right to see more details.

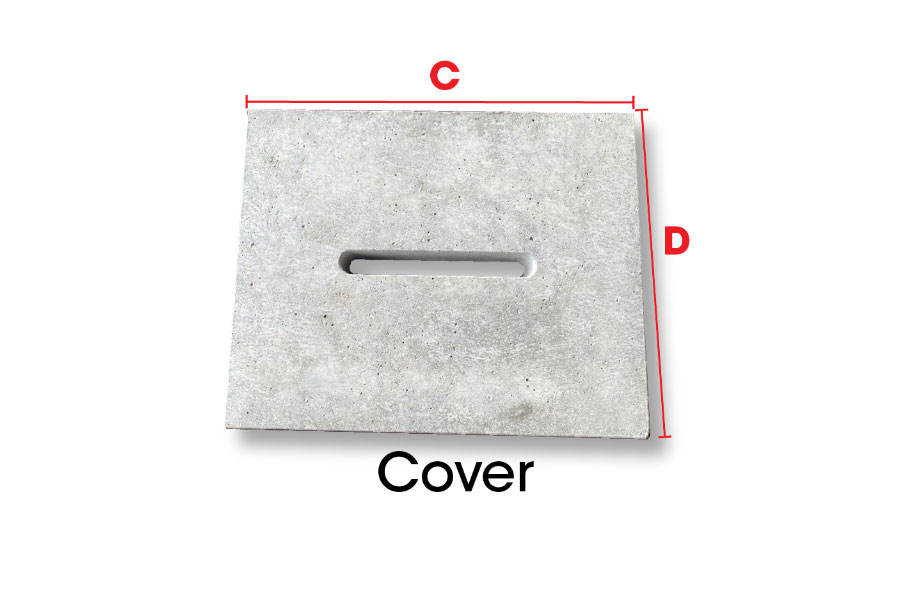

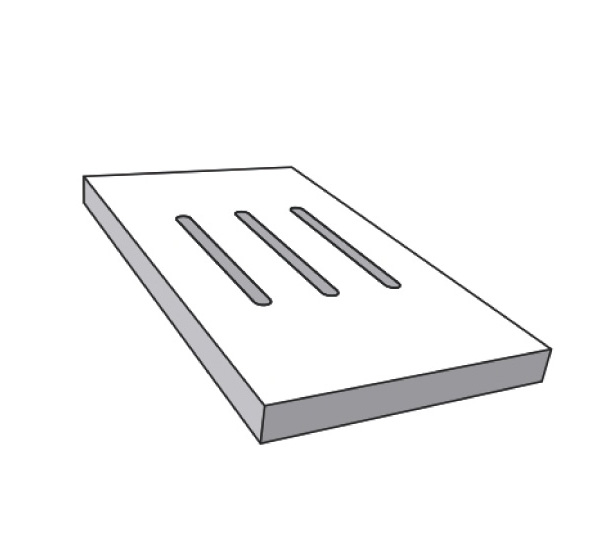

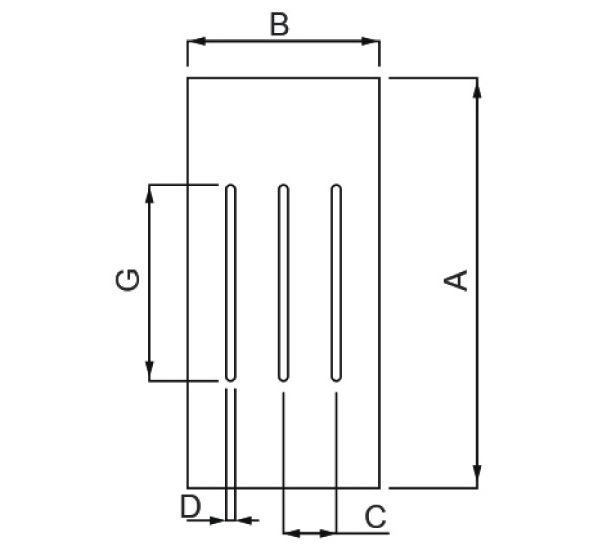

• Drain Cover With 3 Holes


concrete drain cover

Reinforced Concrete Drain Cover

product specification

ITEMS A B C D G THICKNESS
NL 750 3H 900 500 140 30 390 60
NL 900 3H 1100 500 140 30 485 100

*Scroll to the right to see more details.

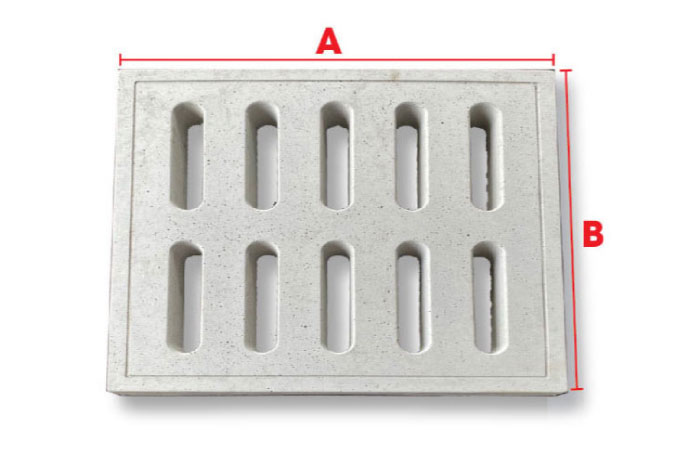

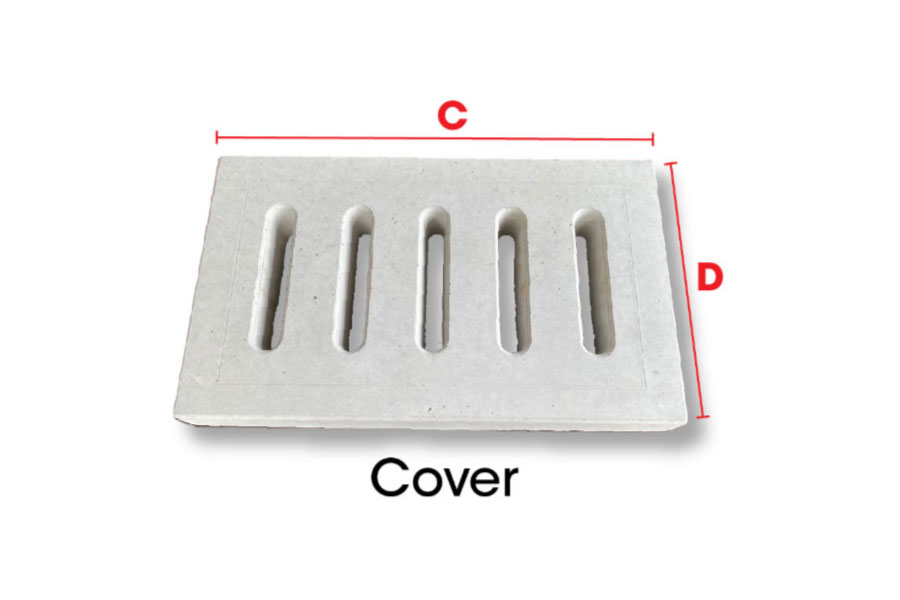

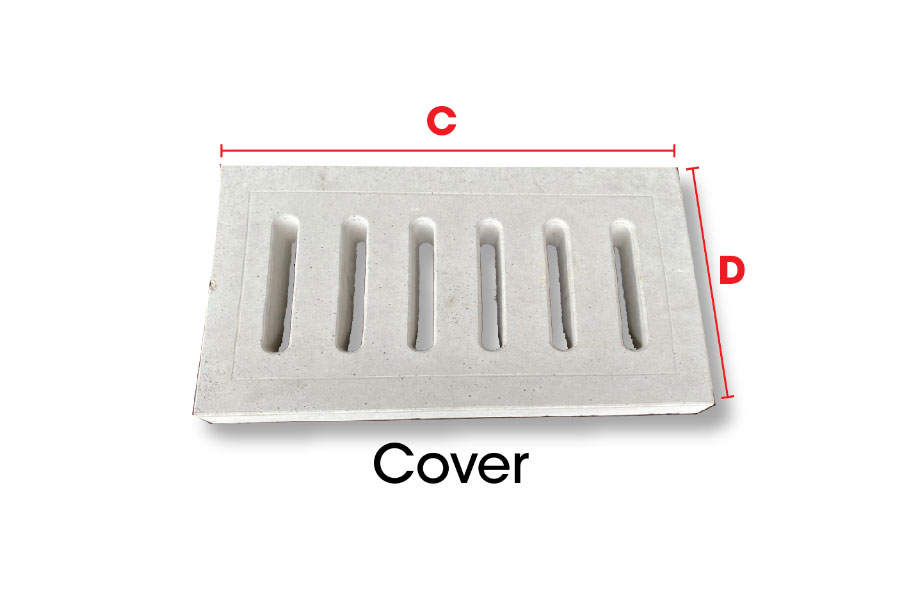

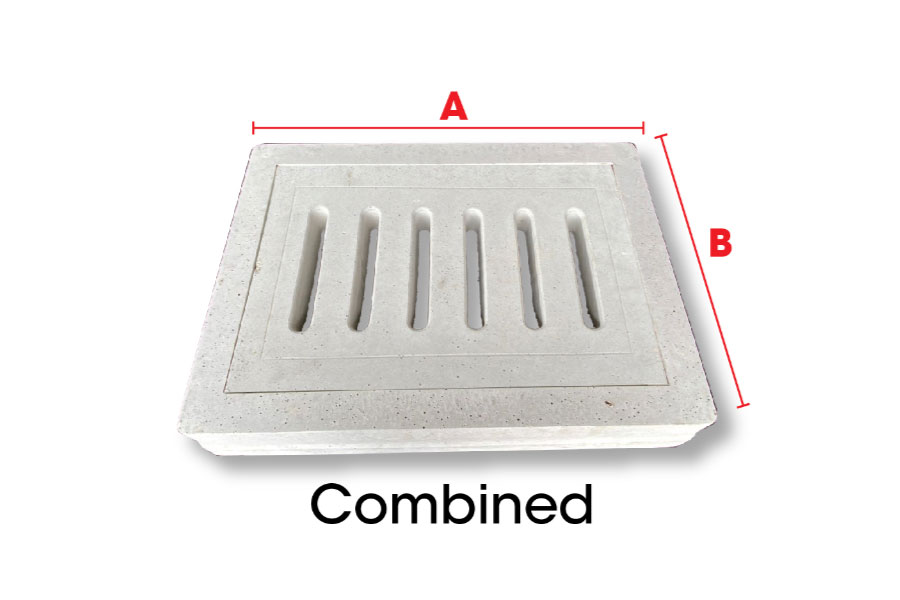

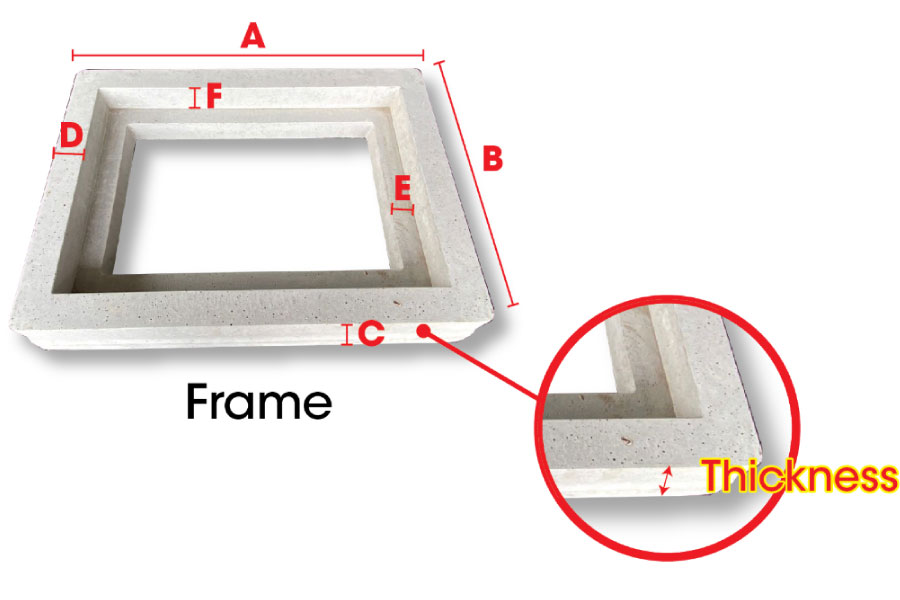

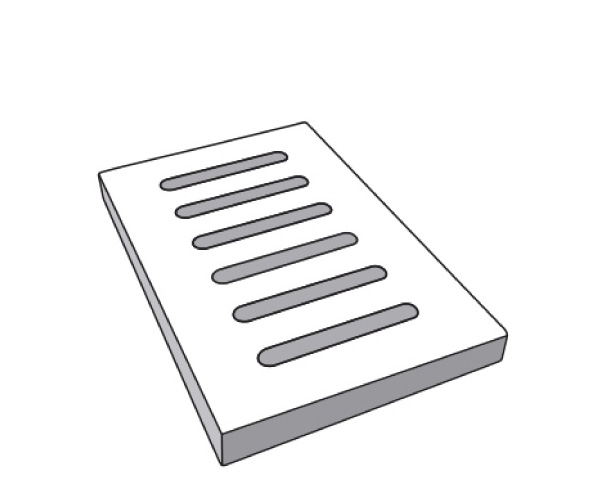

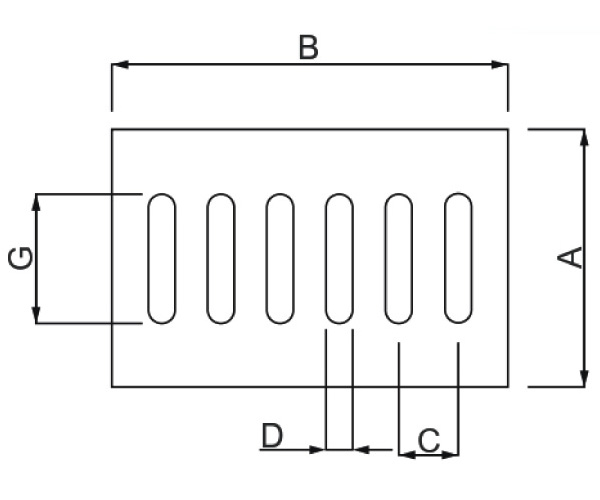

• Drain Cover With 6 Holes


concrete drain cover

Reinforced Concrete Drain Cover

product specification

ITEMS A B C D G THICKNESS
NL 225 6H 300 600 80 25 175 60
NL 300 6H 400 600 80 25 210 60
NL 300 6H (T) 400 600 100 25 210 80
NL 300 6H (TT) 400 600 100 35 210 100
NL 375 6H (T) 500 600 100 25 285 80
NL 450 6H (T) 600 600 100 25 285 80
NL 600 6H (T) 800 600 90 30 392 80

*Scroll to the right to see more details.

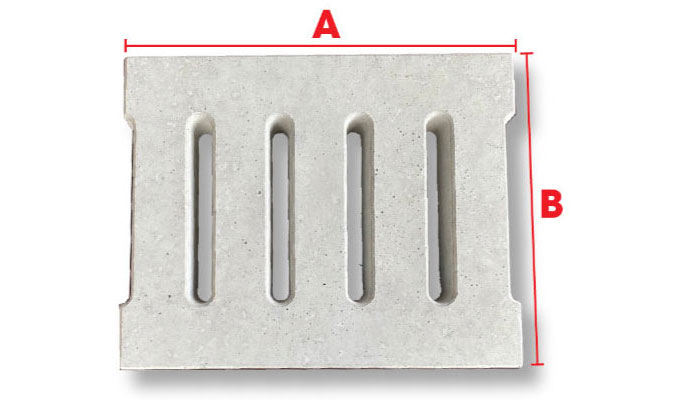

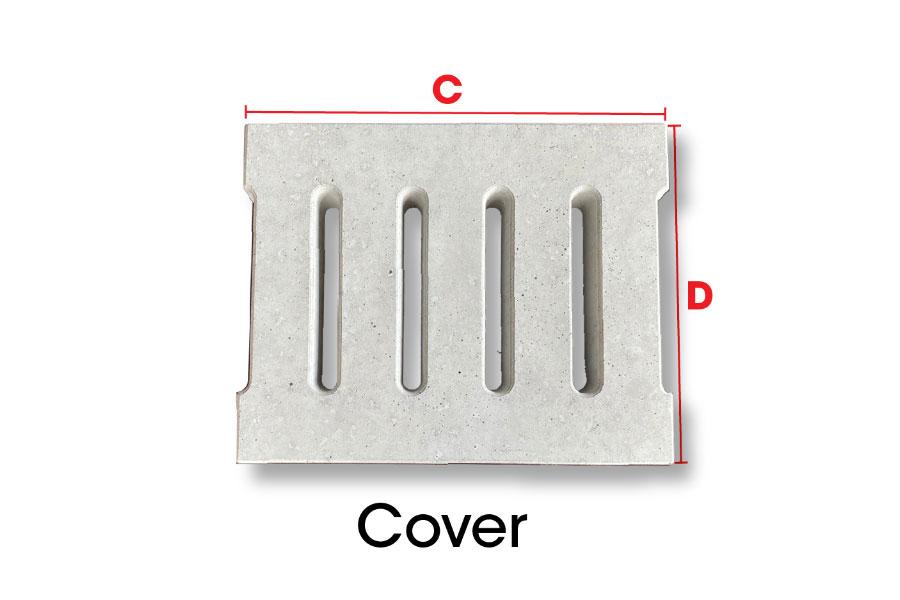

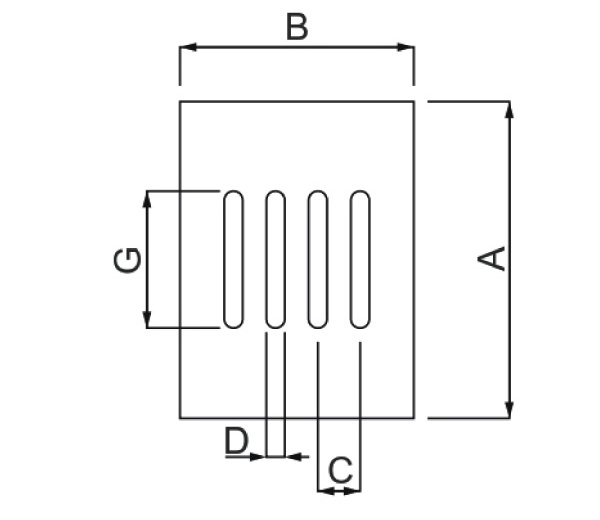

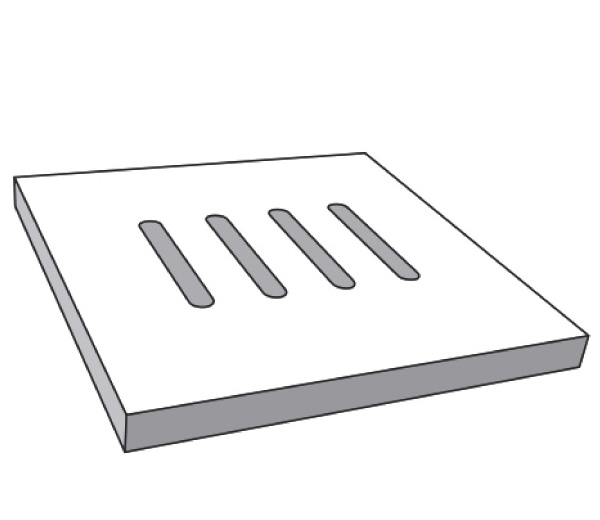

• Drain Cover With 4 Holes


concrete drain cover

Reinforced Concrete Drain Cover

product specification

ITEMS A B C D G THICKNESS
NL 750 4H (750) 750 750 155 40 300 60
NL 900 4H (800) 800 800 165 40 300 60

*Scroll to the right to see more details.
